9000-UL12/B-ST3-277
ONETRACK - Tracks
9000-UL12/B-ST3-277
ONETRACK - Tracks
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
9000-UL12/B-ST3-277
technical specifications
9000-UL12/B-ST3-277
Track systems from
A.A.G. Stucchi

Technical Data

Product Code9000-UL12/B-ST3-277
ColorBlack
Length12 ft
Weight3866,9 g
MaterialsExternal extruded body in aluminium Insulated extruded body in PVC Copper conductors
Max load25 Kg/m (vedi istruzioni di montaggio)
MountingSurface Suspended
Rated current and voltage20A / 277V - 1A / 50V FELV
Frequency60Hz
Load on the circuit5,5kVA
CategoryTracks
SeriesONETRACK
Technical Drawinghttps://cdn.aagstucchi.it/datris/files/technical_drawings/tracks/9000-ul-12-st3-277_d.png
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheet ↗Page 2
9000-UL12/B-ST3-277
dimensions

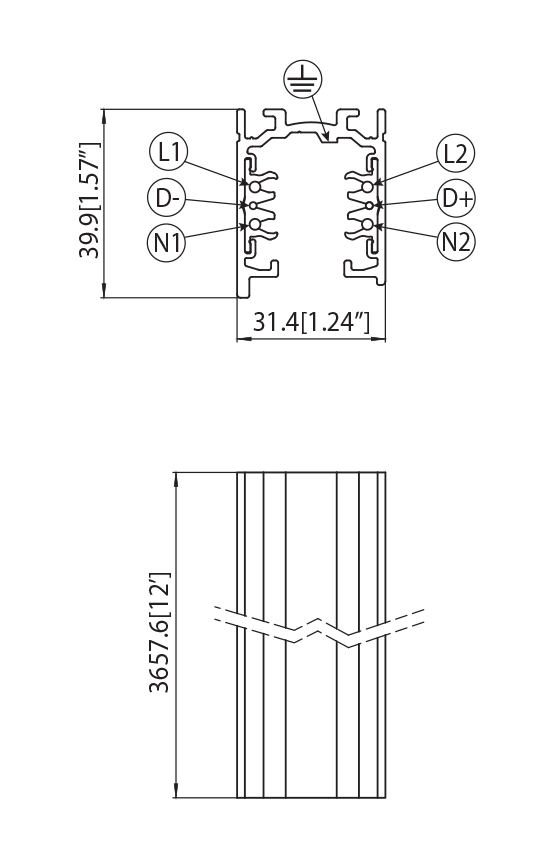

Dimension drawing
