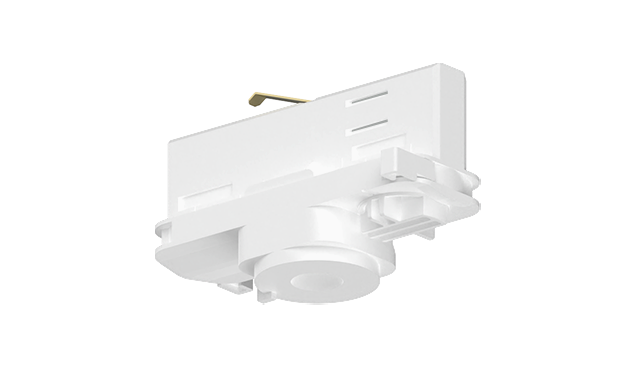

9009-4/W-HW
ONETRACK - Adapters
9009-4/W-HW
ONETRACK - Adapters
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
9009-4/W-HW
technical specifications
9009-4/W-HW
Track systems from
A.A.G. Stucchi

Technical Data

Product Code9009-4/W-HW
ColorWhite
Weight50,1 g
MaterialsPolycarbonate body Copper alloy contacts
Max load100 N
Maximum torque2,5Nm
MountingInsert with cam rotation
Rated current and voltage10A / 250V
Frequency50/60Hz
CategoryAdapters
SeriesONETRACK
Technical Drawinghttps://cdn.aagstucchi.it/datris/files/technical_drawings/tracks/9009-4-HW-ul_d.png
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheet ↗Page 2
9009-4/W-HW
dimensions

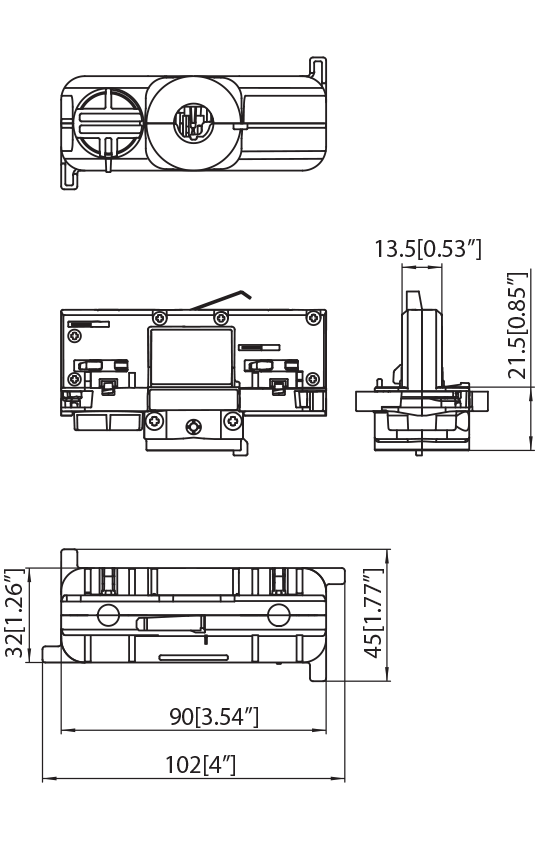

Dimension drawing
