9100-2/B-DH1
ONETRACK - Tracks
ONETRACK - Tracks
| Product Code | 9100-2/B-DH1 |
| Color | Black |
| Length | 2000 mm |
| Weight | n/d |
| Materials | External extruded body in aluminium Insulated extruded body in PVC Copper conductors |
| Max load | 25 Kg/m (vedi istruzioni di montaggio) |
| Mounting | Surface Suspended |
| Rated current and voltage | CLASS I UPPER sector: 10A / 250V AC/DC - CLASS I LOWER sector: 16A / 440V - 1A / 50V FELV |
| Frequency | 50/60Hz |
| Load on phase/phases | UPPER: 2,25kVA (x2) - LOWER: 3,6kVA/10,8kVA |
| Category | Tracks |
| Series | ONETRACK |

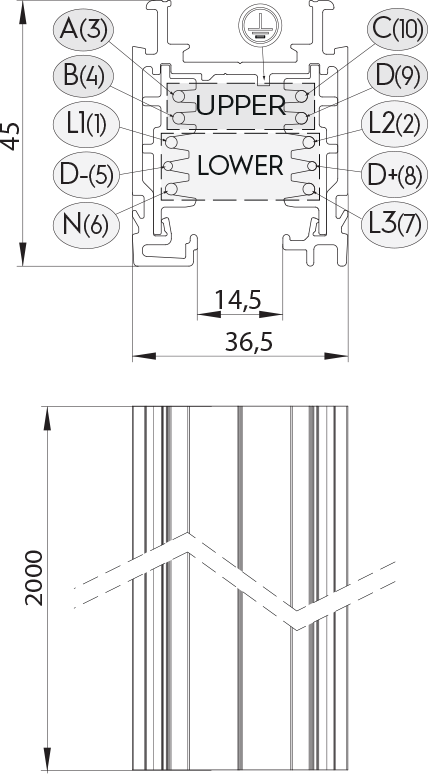

| Technical Drawing | https://cdn.aagstucchi.it/datris/files/technical_drawings/tracks/9100-2-y-DH1_d.png |
