9100-3/B-CH1
ONETRACK - Tracks
9100-3/B-CH1
ONETRACK - Tracks
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
9100-3/B-CH1
technical specifications
9100-3/B-CH1
Track systems from
A.A.G. Stucchi

Technical Data

Product Code9100-3/B-CH1
ColorBlack
Length3000 mm
Weightn/d
MaterialsExternal extruded body in aluminium Insulated extruded body in PVC Copper conductors
Max load25 Kg/m (vedi istruzioni di montaggio)
MountingSurface Suspended
Rated current and voltageCLASS III UPPER sector: 10A /60V DC SELV - CLASS I LOWER sector: 16A / 440V - 1A / 50V FELV
Frequency50/60Hz (LOWER sector)
Load on phase/phasesUPPER: 600VA (x2) - LOWER: 3,6kVA/10,8kVA
CategoryTracks
SeriesONETRACK
Technical Drawinghttps://cdn.aagstucchi.it/datris/files/technical_drawings/tracks/9100-3-y-CH1_d.png
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheet ↗Page 2
9100-3/B-CH1
dimensions

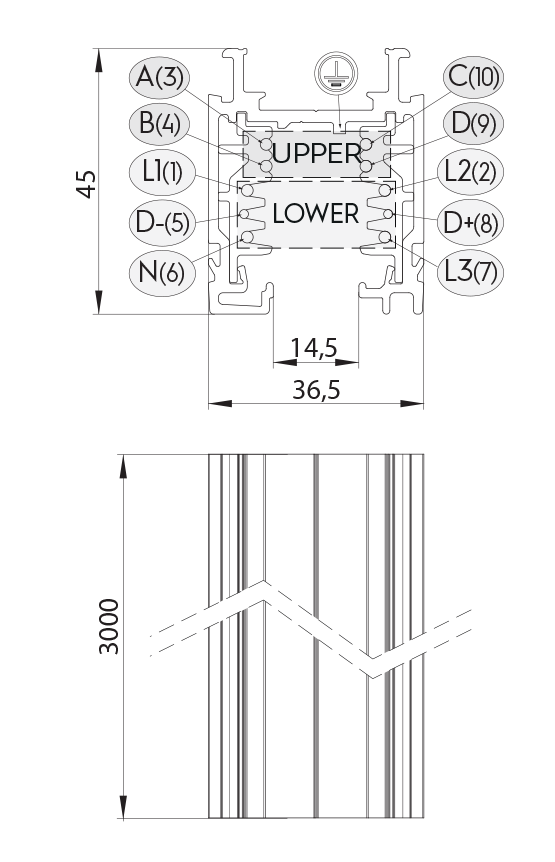

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
