9102/B-DL3
ONETRACK - Connections
9102/B-DL3
ONETRACK - Connections
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
9102/B-DL3
technical specifications
9102/B-DL3
Track systems from
A.A.G. Stucchi

Technical Data

Product Code9102/B-DL3
ColorBlack
Weightn/d
MaterialsPolycarbonate body Copper alloy contacts Steel screws Cable (3000 mm)
MountingSnap-in fixing
Rated current and voltageCLASS I UPPER sector: 10A / 250V AC/DC - CLASS I LOWER sector: 16A / 440V - 1A / 50V FELV
Frequency50/60Hz (LOWER sector)
Load on phase/phasesUPPER: 2,25kVA (x2) - LOWER: 3,6kVA/10,8kVA
CategoryConnections
SeriesONETRACK
Technical Drawinghttps://cdn.aagstucchi.it/datris/files/technical_drawings/tracks/9102-DL3_d.png
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheet ↗Page 2
9102/B-DL3
dimensions

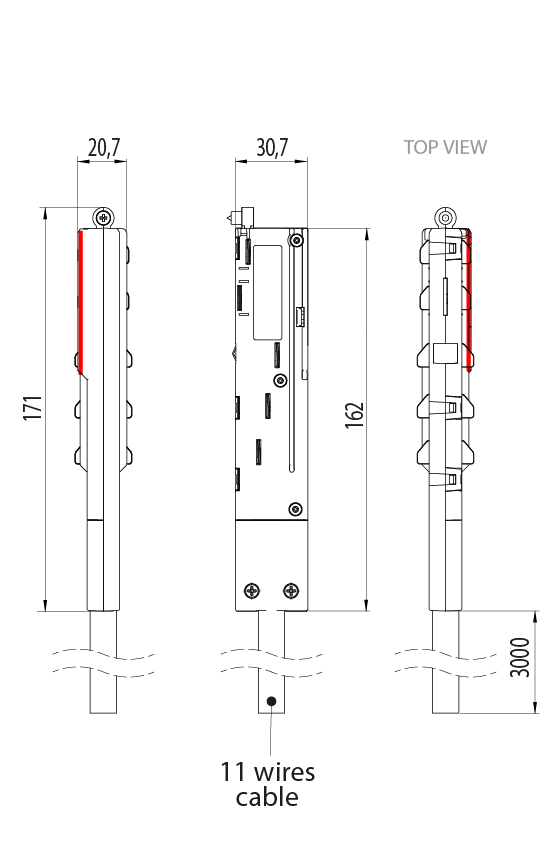

Dimension drawing
