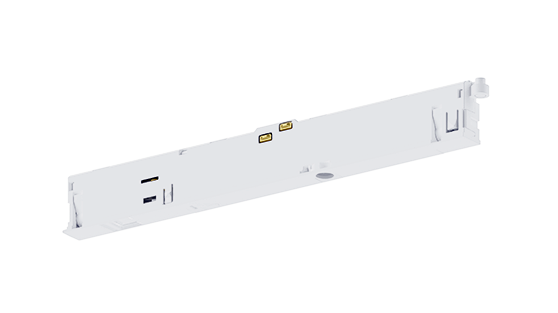

9149-EMD/W2-48
ONETRACK - UPPER sector adapters
9149-EMD/W2-48
ONETRACK - UPPER sector adapters
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
9149-EMD/W2-48
technical specifications
9149-EMD/W2-48
Track systems from
A.A.G. Stucchi

Technical Data

Product Code9149-EMD/W2-48
ColorWhite
Weight67,6 g
MaterialsPolycarbonate body Copper alloy contacts
Max load50 N
Maximum torque2,5Nm
MountingInsert with click
Rated current and voltage4A / 60V DC SELV - 1A / 50V FELV
CategoryUPPER sector adapters
SeriesONETRACK
Technical Drawinghttps://cdn.aagstucchi.it/datris/files/technical_drawings/tracks/9149-EMD-48_d.png
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheet ↗Page 2
9149-EMD/W2-48
dimensions

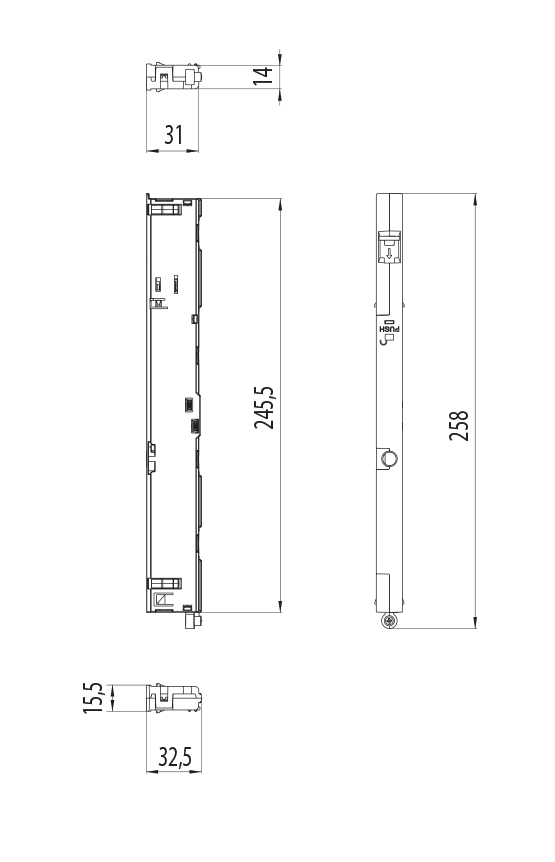

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
