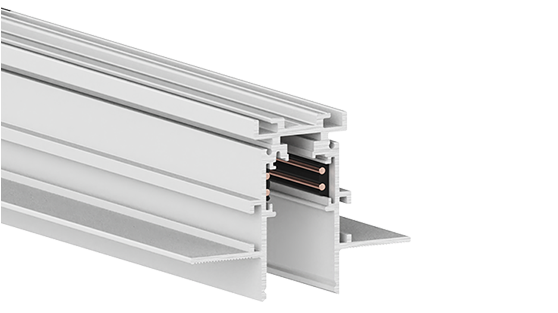

9500-1/W2-ST5-E
EVO - Tracks
9500-1/W2-ST5-E
EVO - Tracks
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
9500-1/W2-ST5-E
technical specifications
9500-1/W2-ST5-E
Track systems from
A.A.G. Stucchi

Technical Data

Product Code9500-1/W2-ST5-E
ColorWhite
Length1000 mm
Weight1478,5 g
MaterialsExternal extruded body in aluminium Insulated extruded body in PVC Copper conductors
Max load25 Kg/m - Peso pannelli/m (vedi istruzioni di montaggio)
MountingTrimless
Rated current and voltage15A/60V dc
CategoryTracks
SeriesEVO
Technical Drawinghttps://cdn.aagstucchi.it/datris/files/technical_drawings/tracks/9500-1-y-ST5-E_d.png
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheet ↗Page 2
9500-1/W2-ST5-E
dimensions

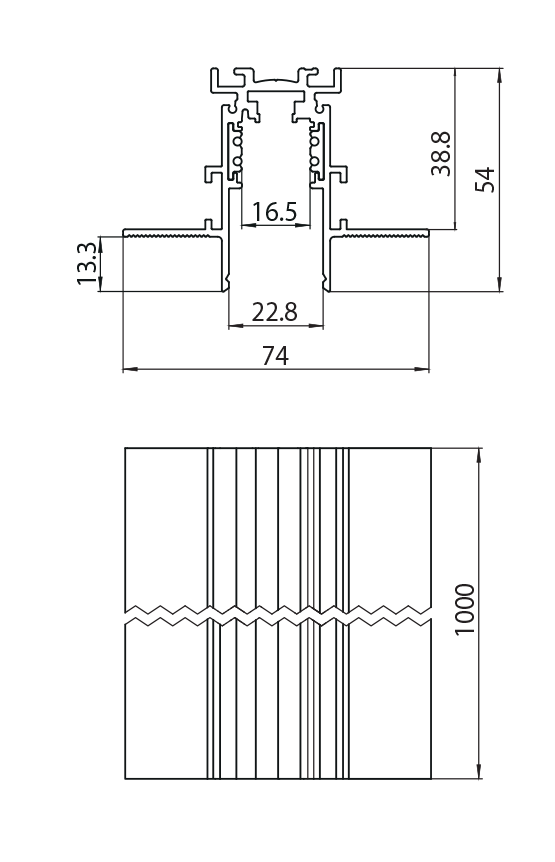

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
