9500-R...E-../W-ST1-E
EVO - EVO
9500-R...E-../W-ST1-E
EVO - EVO
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
9500-R...E-../W-ST1-E
technical specifications
9500-R...E-../W-ST1-E
Track systems from
A.A.G. Stucchi

Technical Data

Product Code9500-R...E-../W-ST1-E
ColorWhite
Radius≥ 350 mm
Weighttbd
MaterialsExternal extruded body in aluminium Insulated extruded body in PVC Copper conductors
Max load25 Kg/m (vedi istruzioni di montaggio)
MountingSurface Suspended
Rated current and voltage15A/60V dc
CategoryEVO
SeriesEVO
Technical Drawinghttps://cdn.aagstucchi.it/datris/files/technical_drawings/tracks/9500-RxE-y-ST1-E_d.png
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheet ↗Page 2
9500-R...E-../W-ST1-E
dimensions

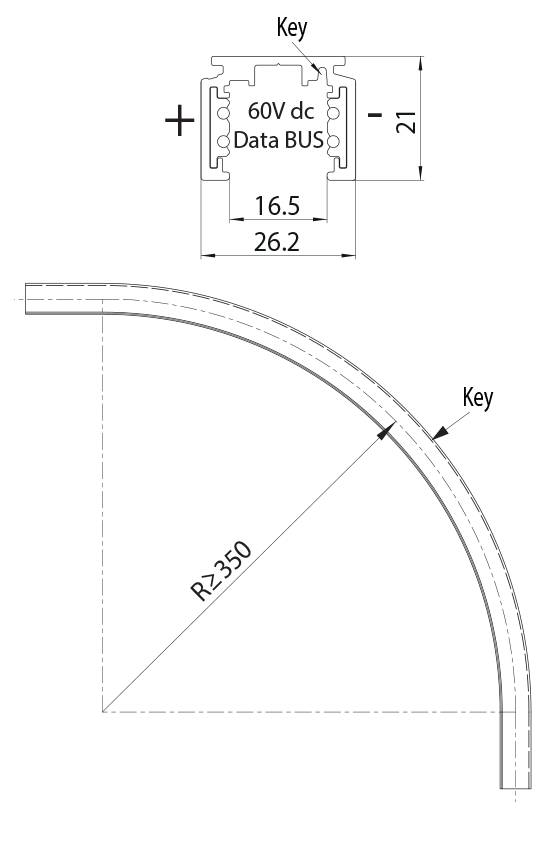

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
