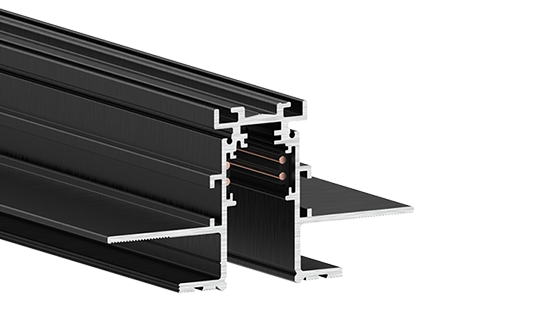

9500-UL8/B-ST14
EVO - Tracks
9500-UL8/B-ST14
EVO - Tracks
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
9500-UL8/B-ST14
technical specifications
9500-UL8/B-ST14
Track systems from
A.A.G. Stucchi

Technical Data

Product Code9500-UL8/B-ST14
ColorBlack anodized external extrusion
Length8 ft
Weight4578,3 g
MaterialsExternal extruded body in anodized aluminium Insulated extruded body in PVC Copper conductors
Max load25 Kg/m - Peso pannelli/m (vedi istruzioni di montaggio)
MountingTrimless
Rated current and voltage15A/60V dc
CategoryTracks
SeriesEVO
Technical Drawinghttps://cdn.aagstucchi.it/datris/files/technical_drawings/tracks/9500-UL8-y-ST14_d.png
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheet ↗Page 2
9500-UL8/B-ST14
dimensions
Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
