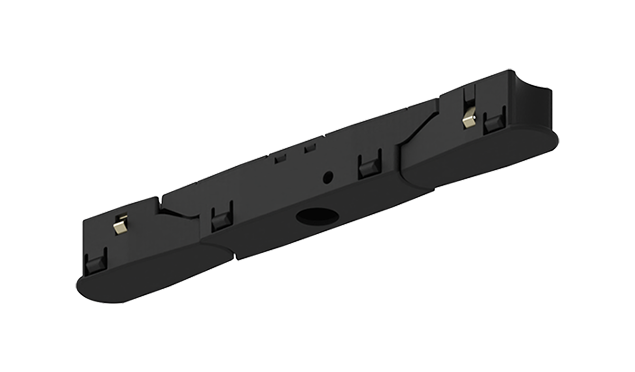

9509-SN/B-E
ONETRACK - EVO
9509-SN/B-E
ONETRACK - EVO
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
9509-SN/B-E
technical specifications
9509-SN/B-E
Track systems from
A.A.G. Stucchi

Technical Data

Product Code9509-SN/B-E
ColorBlack
Radius≥ 350 mm
Weight17,9 g
MaterialsPolycarbonate body Copper alloy contacts
Max load10 N
Maximum torque2,5 Nm
MountingSnap-in fixing
Rated current and voltage2A-60V dc
CategoryEVO
SeriesONETRACK
Technical Drawinghttps://cdn.aagstucchi.it/datris/files/technical_drawings/tracks/9509-SN-E_d.png
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheet ↗Page 2
9509-SN/B-E
dimensions
Dimension drawing
