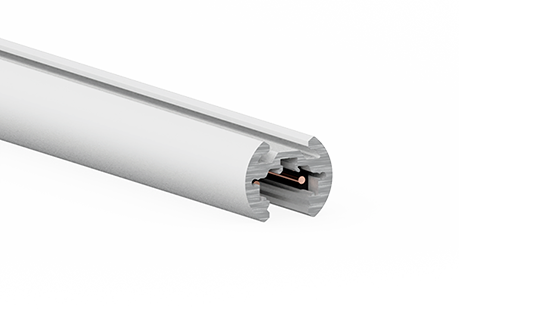

9600-3/W2-ST15
ONETRACK - Tracks
9600-3/W2-ST15
ONETRACK - Tracks
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
9600-3/W2-ST15
technical specifications
9600-3/W2-ST15
Track systems from
A.A.G. Stucchi

Technical Data

Product Code9600-3/W2-ST15
ColorWhite
Length3000 mm
Weight2093,9 g
MaterialsExternal extruded body in aluminium Insulated extruded body in PVC Copper conductors
Max load9 Kg (vedi istruzioni di montaggio)
MountingSurface Suspended
Rated current and voltage10A/60V dc1A/60V dc
CategoryTracks
SeriesONETRACK
Technical Drawinghttps://cdn.aagstucchi.it/datris/files/technical_drawings/tracks/9600-3-y-ST15_d.png
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheet ↗Page 2
9600-3/W2-ST15
dimensions

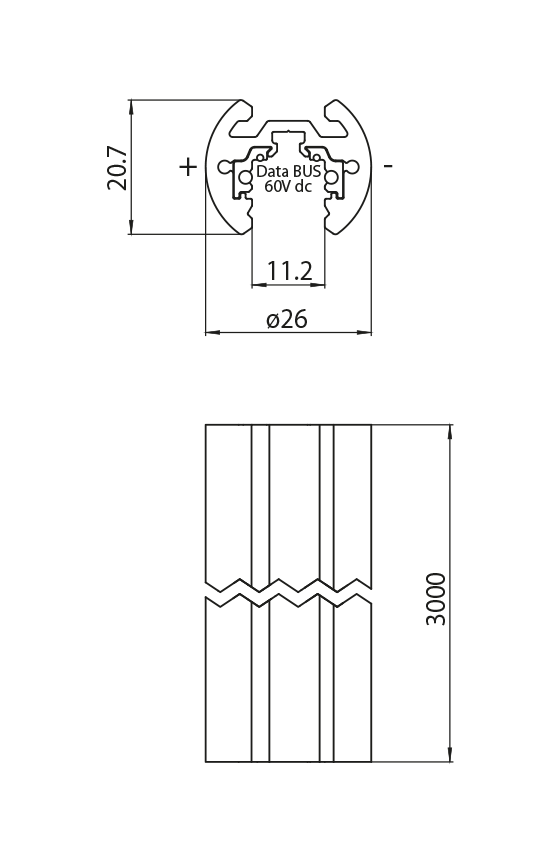

Dimension drawing
