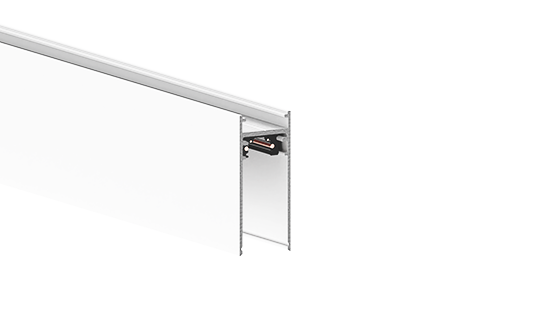

9600C-0,5/B-M2-W2
ONETRACK - Core + Cover
9600C-0,5/B-M2-W2
ONETRACK - Core + Cover
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
9600C-0,5/B-M2-W2
technical specifications
9600C-0,5/B-M2-W2
Track systems from
A.A.G. Stucchi

Technical Data

Product Code9600C-0,5/B-M2-W2
ColorWhite
Length500 mm
Weightn/d
MaterialsExternal aluminum extrusion Insulating polymer extrusion Copper conductors
Max load25 Kg/m (vedi istruzioni di montaggio)
MountingSuspended
Rated current and voltage10A/60V dc1A/60V dc
CategoryCore + Cover
SeriesONETRACK
Technical Drawinghttps://cdn.aagstucchi.it/datris/files/technical_drawings/tracks/9600C-05-B-M2_d.png
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheet ↗Page 2
9600C-0,5/B-M2-W2
dimensions

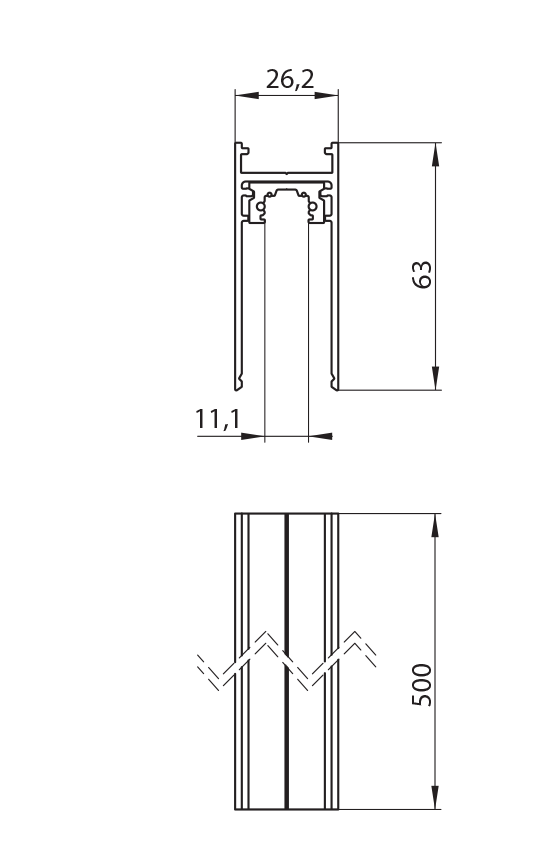

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
