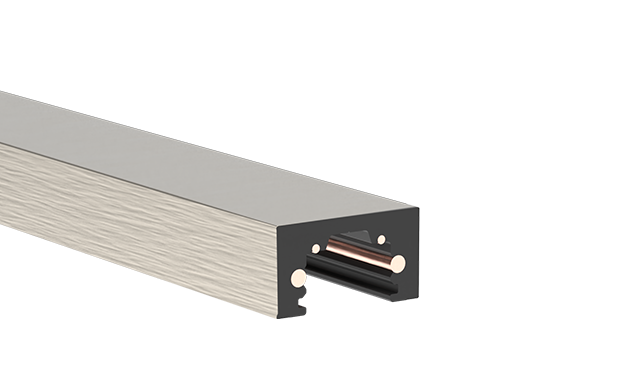

9600C-1/B-F1
ONETRACK - Core + Film
9600C-1/B-F1
ONETRACK - Core + Film
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
9600C-1/B-F1
technical specifications
9600C-1/B-F1
Track systems from
A.A.G. Stucchi

Technical Data

Product Code9600C-1/B-F1
ColorChampagne
Length990 mm
Weight226,5 g
MaterialsInsulating polymer extrusion Copper conductors Steel screws Bi-material wall plugs
Max load9 Kg (vedi istruzioni di montaggio)
MountingSurface
Rated current and voltage10A/60V dc1A/60V dc
CategoryCore + Film
SeriesONETRACK
Technical Drawinghttps://cdn.aagstucchi.it/datris/files/technical_drawings/tracks/9600C-1-F_d.png
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheet ↗Page 2
9600C-1/B-F1
dimensions
Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
