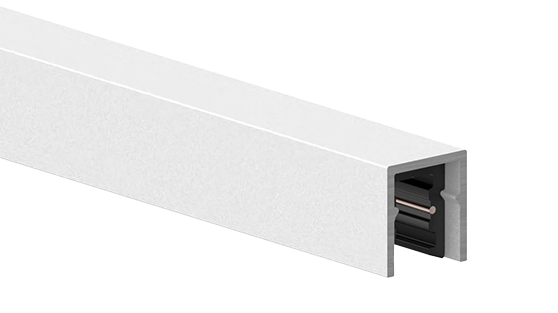

9800C-1/B-S1-W2
ONETRACK - Core + Cover
9800C-1/B-S1-W2
ONETRACK - Core + Cover
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
9800C-1/B-S1-W2
technical specifications
9800C-1/B-S1-W2
Track systems from
A.A.G. Stucchi

Technical Data

Product Code9800C-1/B-S1-W2
ColorWhite
Length1000 mm
Weight232,5 g
MaterialsExternal aluminum extrusion Insulating polymer extrusion Copper conductors Steel screws Bi-material wall plugs
Max load2Kg/m (ENEC) 3Kg/m (cULus)
MountingSurface
Rated current and voltage5A/60V dc
CategoryCore + Cover
SeriesONETRACK
Technical Drawinghttps://cdn.aagstucchi.it/datris/files/technical_drawings/tracks/9800C-1-B-S1_d.png
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheet ↗Page 2
9800C-1/B-S1-W2
dimensions
Dimension drawing
