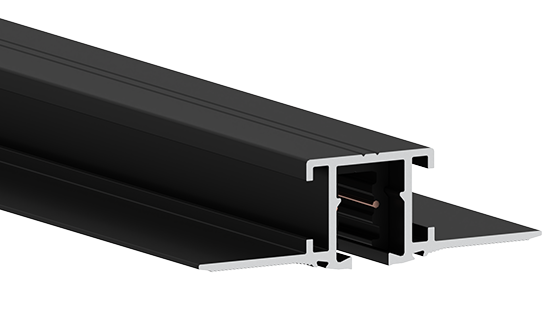

9800C-3/B-S3-B
ONETRACK - Core + Cover
9800C-3/B-S3-B
ONETRACK - Core + Cover
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
9800C-3/B-S3-B
technical specifications
9800C-3/B-S3-B
Track systems from
A.A.G. Stucchi

Technical Data

Product Code9800C-3/B-S3-B
ColorBlack
Length3000 mm
Weight1241,4 g
MaterialsExternal aluminum extrusion Insulating polymer extrusion Copper conductors
Max load2Kg/m (ENEC) 3Kg/m (cULus)
Mountingtrimless
Rated current and voltage5A/60V dc
CategoryCore + Cover
SeriesONETRACK
Technical Drawinghttps://cdn.aagstucchi.it/datris/files/technical_drawings/tracks/9800C-3-B-S3_d.png
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheet ↗Page 2
9800C-3/B-S3-B
dimensions
Dimension drawing
