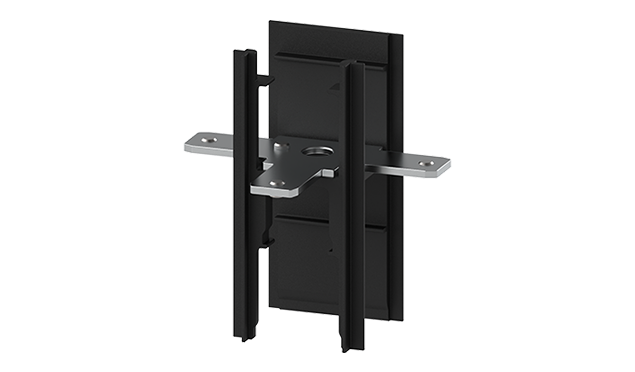

S-9513/B-P-ST9
ONETRACK - Connection joinings accessories
S-9513/B-P-ST9
ONETRACK - Connection joinings accessories
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
S-9513/B-P-ST9
technical specifications
S-9513/B-P-ST9
Track systems from
A.A.G. Stucchi

Technical Data

Product CodeS-9513/B-P-ST9
ColorBlack
Weight132,2 g
MaterialsPolyamide body Metal bracket
MountingWith screw
Compatible with9500...ST9 e 9513..., 9514..., 9515...,9516...
CategoryConnection joinings accessories
SeriesONETRACK
Technical Drawinghttps://cdn.aagstucchi.it/datris/files/technical_drawings/tracks/S-9513-P-ST9_d.png
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheet ↗Page 2
S-9513/B-P-ST9
dimensions
Dimension drawing
