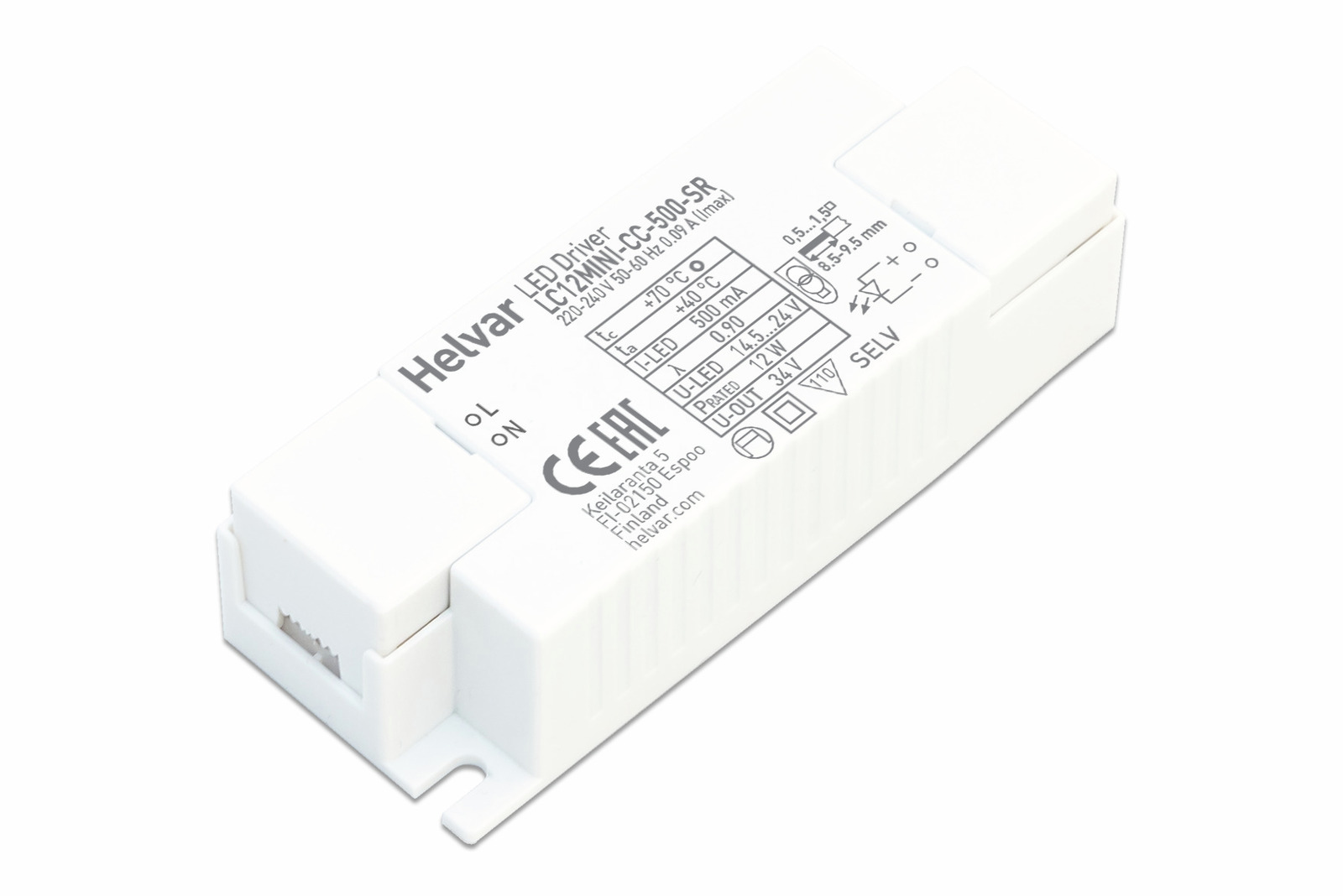

LC12MINI-CC-500-SR (Phase out)
12 W constant current LED driver
| Output | Fixed current |
| Load protection | SELV60 |
| Max output power (W) | 12 |
| Uout max, abnormal | 34 |
| Efficiency up to (%) | 83 |
| Power factor at full load | 0.9 |
| MinMaxIout | 500 |
| Uout | 14,5–24 |
| Voltage range (VAC) | 198–264 |
| DC input characteristics | Suitable for DC use |
| DC range (V) | 176-280 |
| Max temperature at tc point (°C) | 70 |
| Ambient temperature range | –20 °C .. +40 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 50000 |
