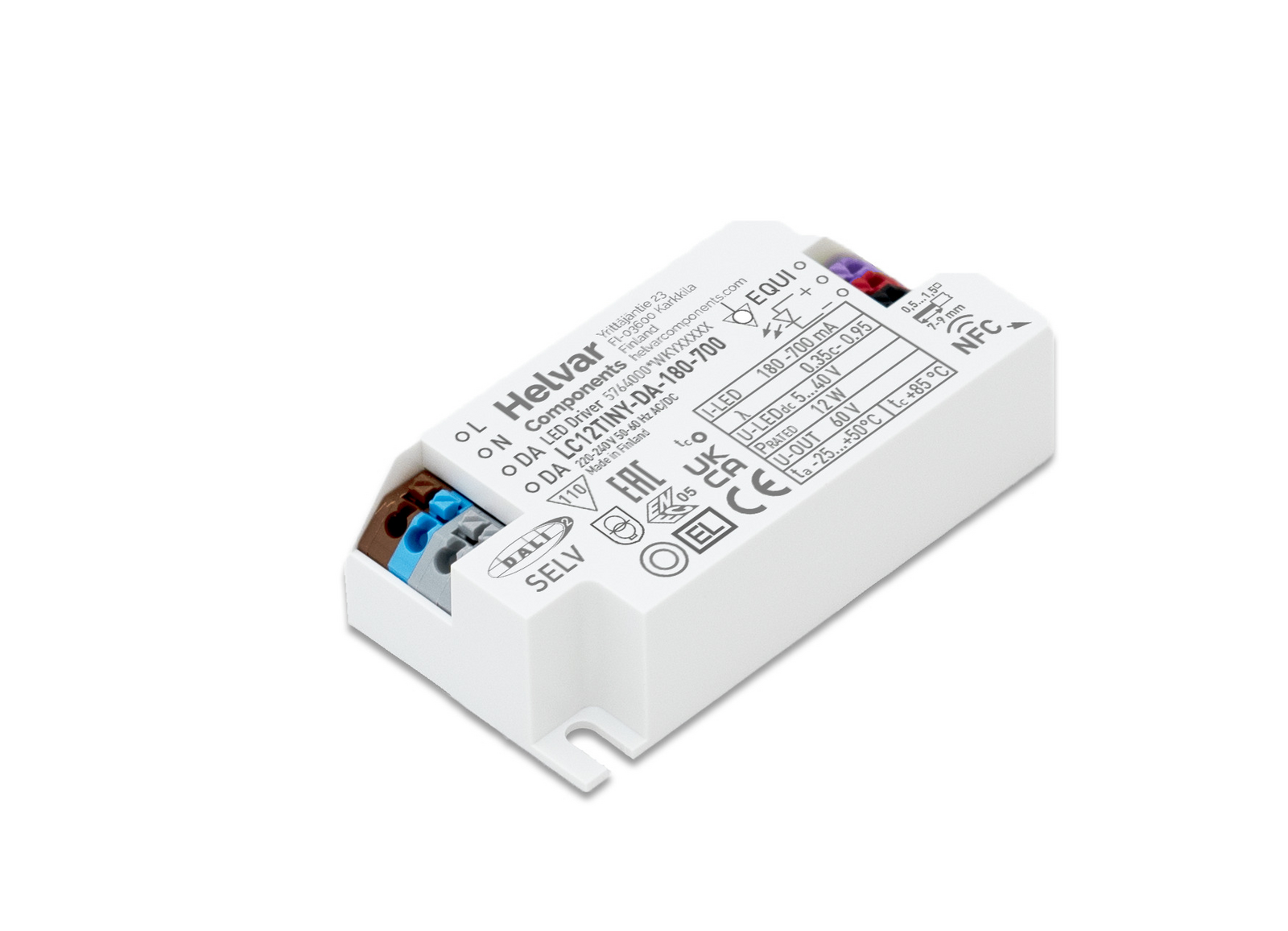

LC12TINY-DA-180-700
12 W SELV Dimmable DALI-2 tiny-sized LED driver for built-in use
| Output | Adjustable current |
| Load protection | SELV60 |
| Max output power (W) | 12 |
| Power factor at full load | 0.95 |
| Efficiency up to (%) | 88 |
| Uout | 5 - 40 |
| Voltage range (VAC) | 198 VAC – 264 VAC |
| DC input characteristics | Approved for emergency lighting applications |
| DC range (V) | 176-280 |
| Max temperature at tc point (°C) | 85 |
| Ambient temperature range | –25 °C .. +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Dimming range | 1% - 100% |
| Control | DALI-2 |
