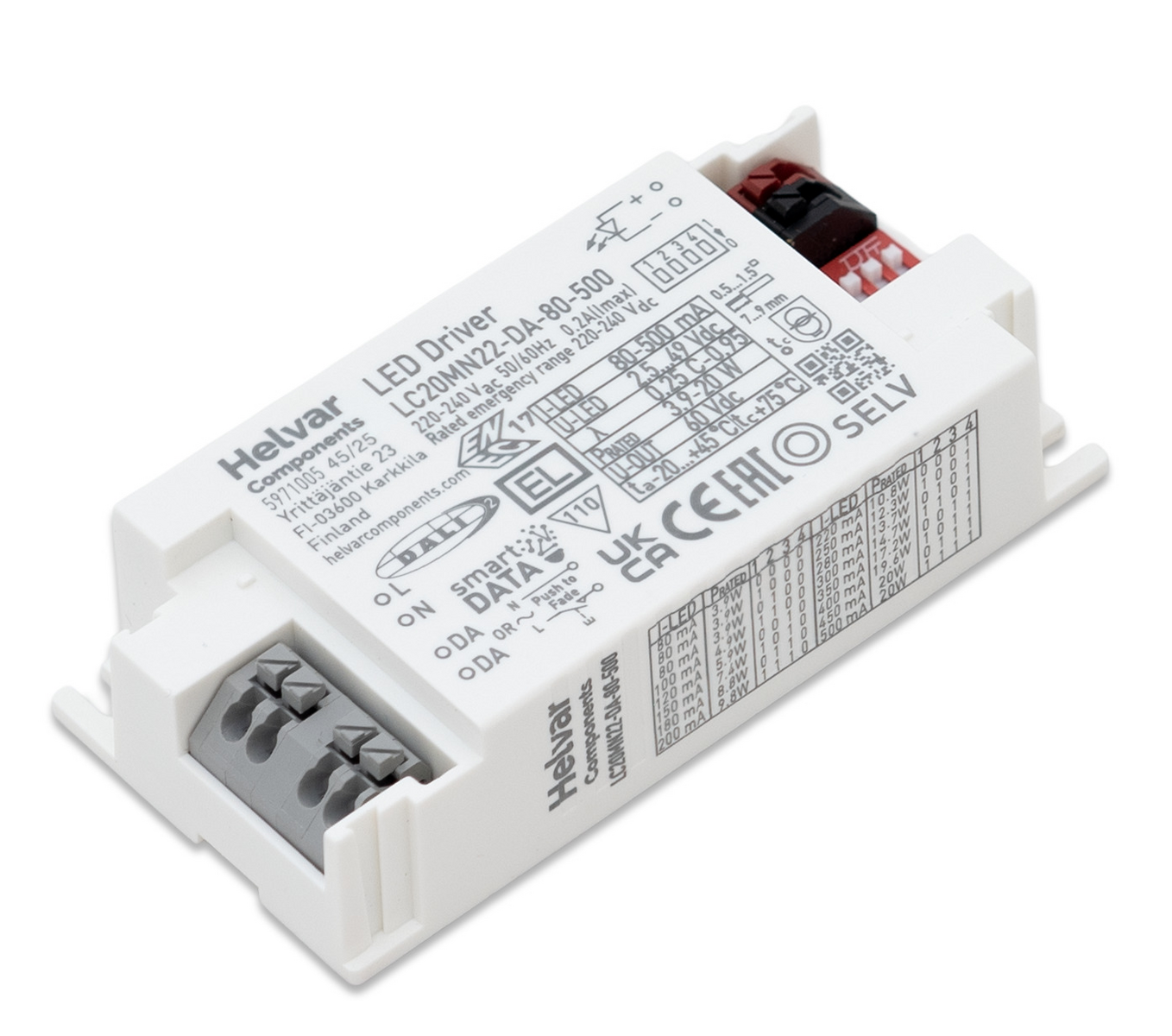

LC20MN22-DA-80-500
20 W DALI-2 dimmable 22 mm slim LED driver for built-in use. Also separate strain reliefs available!
| Output | DIP switch selectable current |
| Load protection | SELV60 |
| Max output power (W) | 20 |
| Power factor at full load | 0.95 |
| Efficiency up to (%) | 87 |
| Total Harmonic Distortion @ Full power (THD %) | 10 |
| Uout max, abnormal | 60 |
| Uout | 2.5 - 49 |
| Voltage range (VAC) | 198-264 |
| DC input characteristics | Approved for emergency applications |
| DC range (V) | 176-280 |
| Max temperature at tc point (°C) | 75 |
| Ambient temperature range | –20 °C .. +45 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
