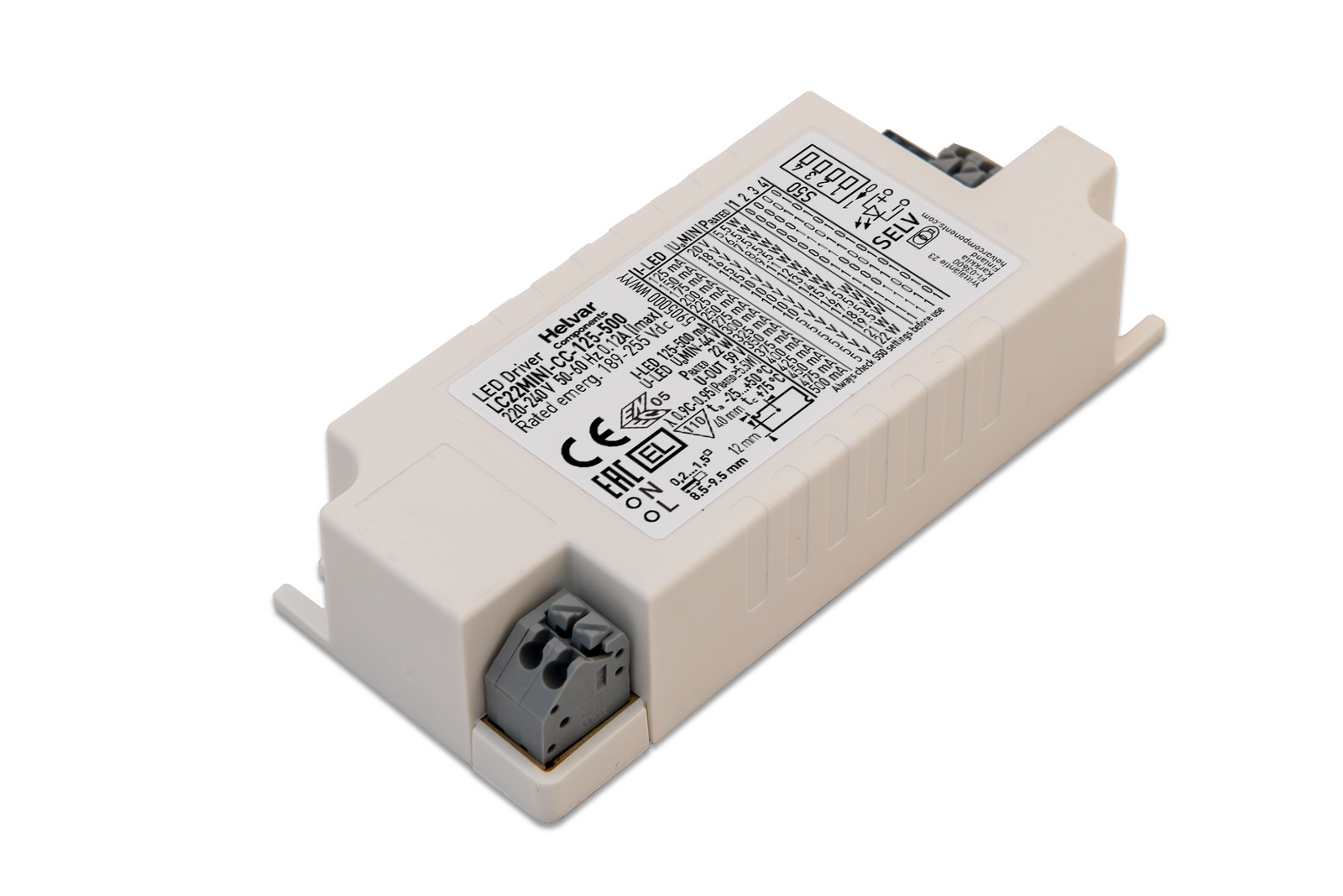

LC22MINI-CC-125-500
22 W constant current LED driver
| Output | DIP switch selectable current |
| Load protection | SELV60 |
| Max output power (W) | 22 |
| Uout max, abnormal | 59 |
| Efficiency up to (%) | 89 |
| Power factor at full load | 0.95 |
| MinMaxIout | 125 |
| Uout | 20–44 |
| Voltage range (VAC) | 198–264 |
| DC input characteristics | Suitable for DC use |
| DC range (V) | 176-280 |
| Max temperature at tc point (°C) | 75 |
| Ambient temperature range | –25 °C .. +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
