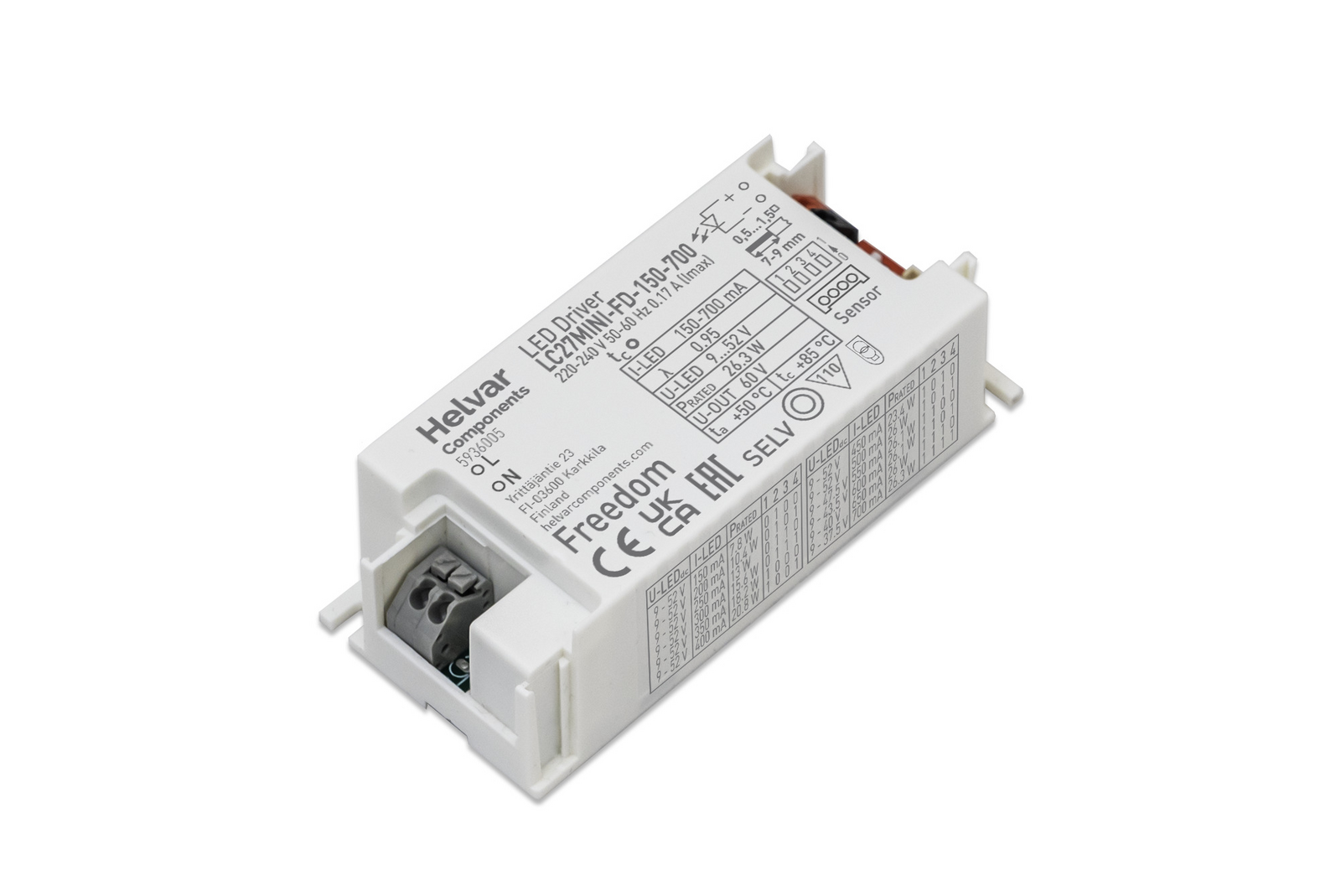

LC27MINI-FD-150-700
26 W Freedom controllable LED driver with integrated antenna and radiocommunication unit, for built-in use.
| Output | DIP switch selectable current |
| Load protection | SELV60 |
| Max output power (W) | 26.3 |
| Efficiency up to (%) | 87 |
| Power factor at full load | 0.95 |
| Uout max, abnormal | 60 |
| MinMaxIout | 150 |
| Voltage range (VAC) | 198–264 |
| DC input characteristics | Suitable for DC use |
| DC range (V) | 176-280 |
| Max temperature at tc point (°C) | 85 |
| Ambient temperature range | –25 °C .. +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Control | Freedom |
