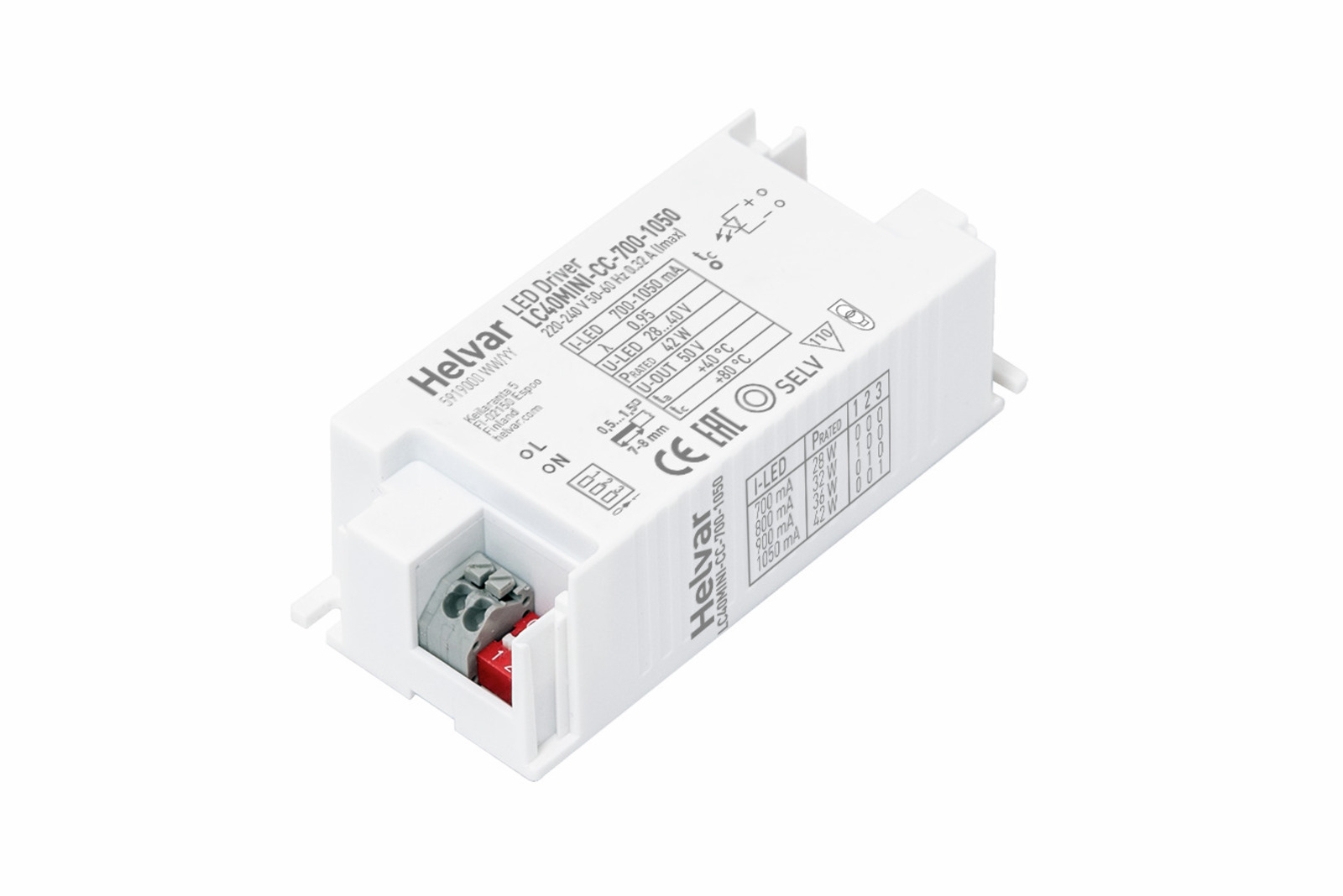

LC40MINI-CC-700-1050 (Discontinued)
40 W constant current LED driver for built-in use. Also separate strain reliefs available!
| Output | DIP switch selectable current |
| Load protection | SELV60 |
| Max output power (W) | 42 |
| Efficiency up to (%) | 85 |
| Power factor at full load | 0.95 |
| Uout max, abnormal | 50 |
| MinMaxIout | 700 |
| Uout | 28–40 |
| Voltage range (VAC) | 198–264 |
| DC input characteristics | Suitable for DC use |
| DC range (V) | 176-280 |
| Max temperature at tc point (°C) | 80 |
| Ambient temperature range | –20 °C .. +40 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 50000 |
