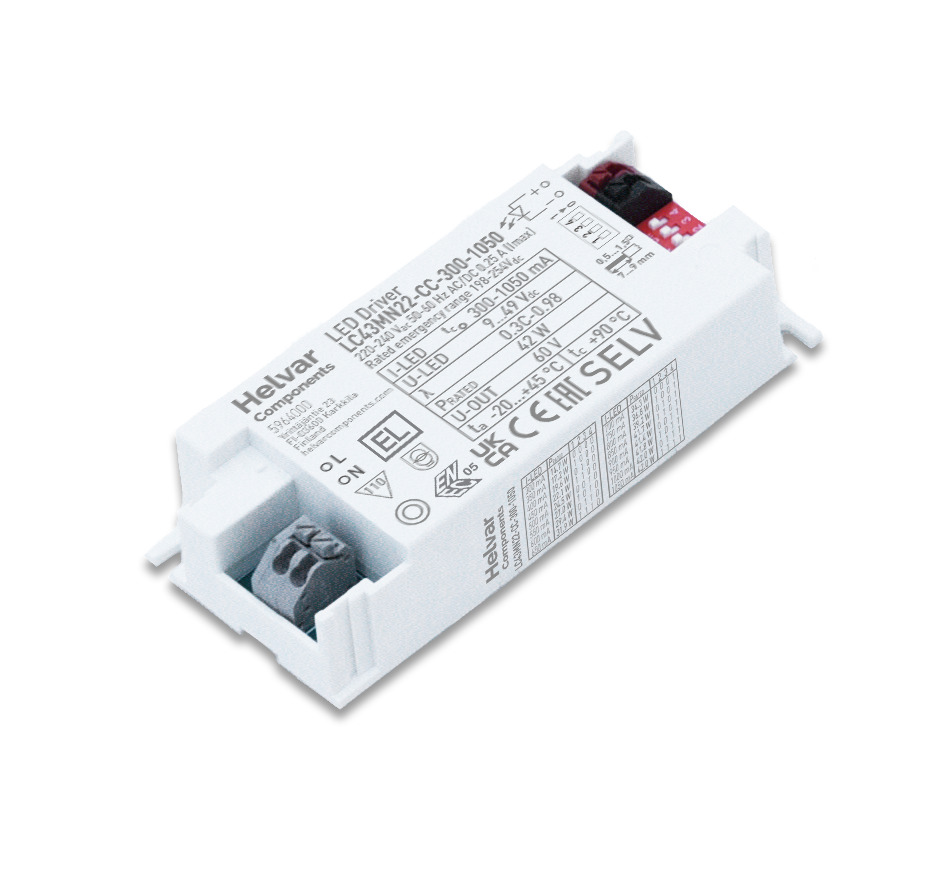

LC43MN22-CC-300-1050
42 W Constant Current 22 mm slim LED driver for built-in use. Also separate strain reliefs available!
| Output | DIP switch selectable current |
| Load protection | SELV60 |
| Max output power (W) | 42 |
| Total Harmonic Distortion @ Full power (THD %) | 7 |
| Uout max, abnormal | 60 |
| Power factor at full load | 0.98 |
| Efficiency up to (%) | 90 |
| Uout | 9 - 49 |
| Voltage range (VAC) | 198-264 |
| DC input characteristics | Suitable for DC use |
| DC range (V) | 180-280 |
| Max temperature at tc point (°C) | 90 |
| IP Rating | IP20 |
| Ambient temperature range | –20 °C .. +45 °C |
| Lifetime up to (h) | 100000 |
