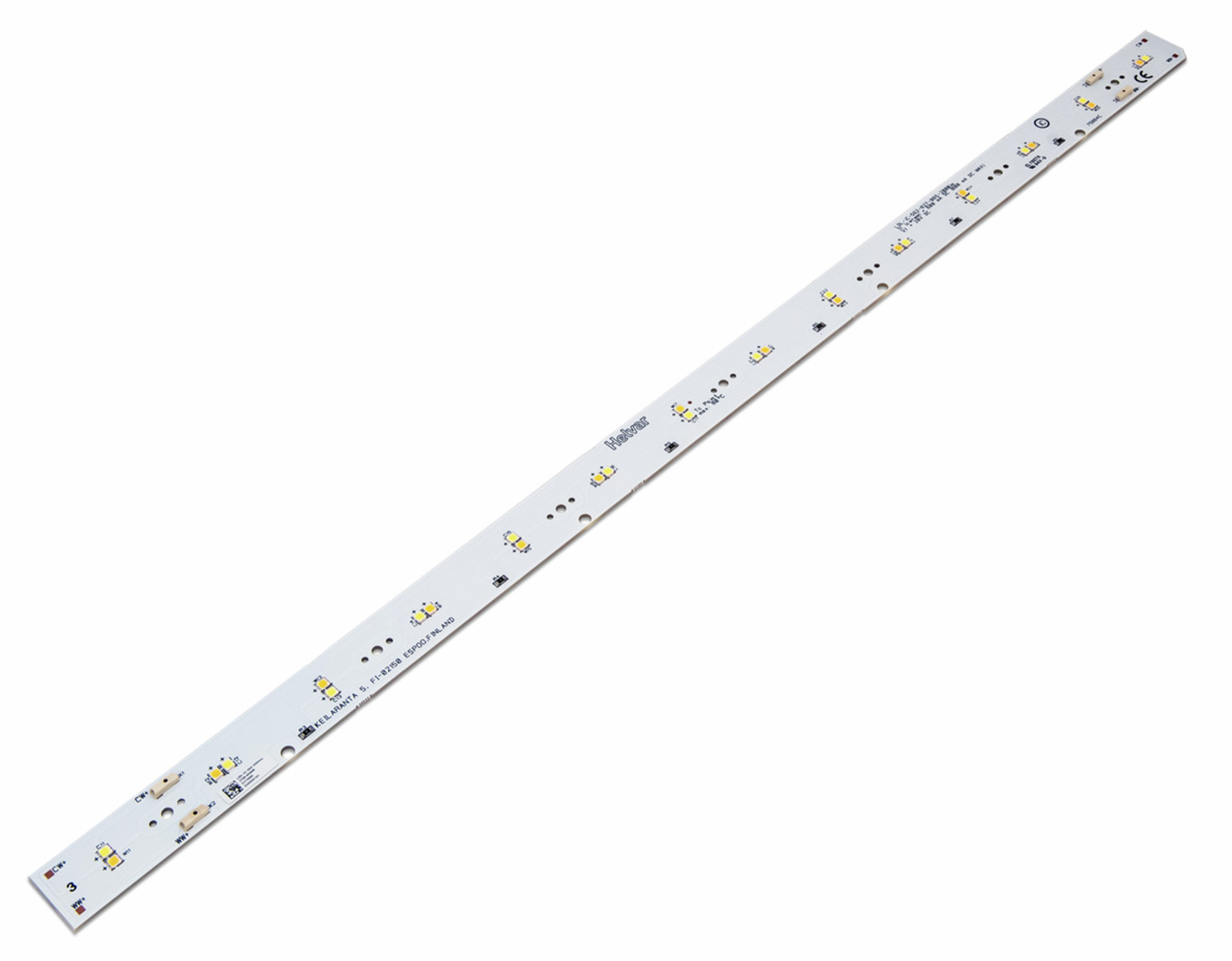

LDL-iC-562
Tunable White Linear LED Module (LEDiL DAISY)
| Insulation test voltage [V] | 1500 |
| Maximum operating current [mA] | 800 |
| Maximum rated voltage [V] | 250 |
| Nominal operating current [mA] | 600 |
| IP Rating | IP00 |
| Lifetime up to (h) | 50000 |
| Maximum temperature at Tc point [°C] | 80 |
| Operating temperature range | –20…+50 °C, Tp = Tc 65 °C |
| Beam angle [°] | 120 |
| Colour rendering index, min. | 80 |
| Risk group | 1 |
| Initial colour consistency | 3 MacAdam steps |
| Datasheet | LDL-iC-562-827-865-2000lm 30/150 |
