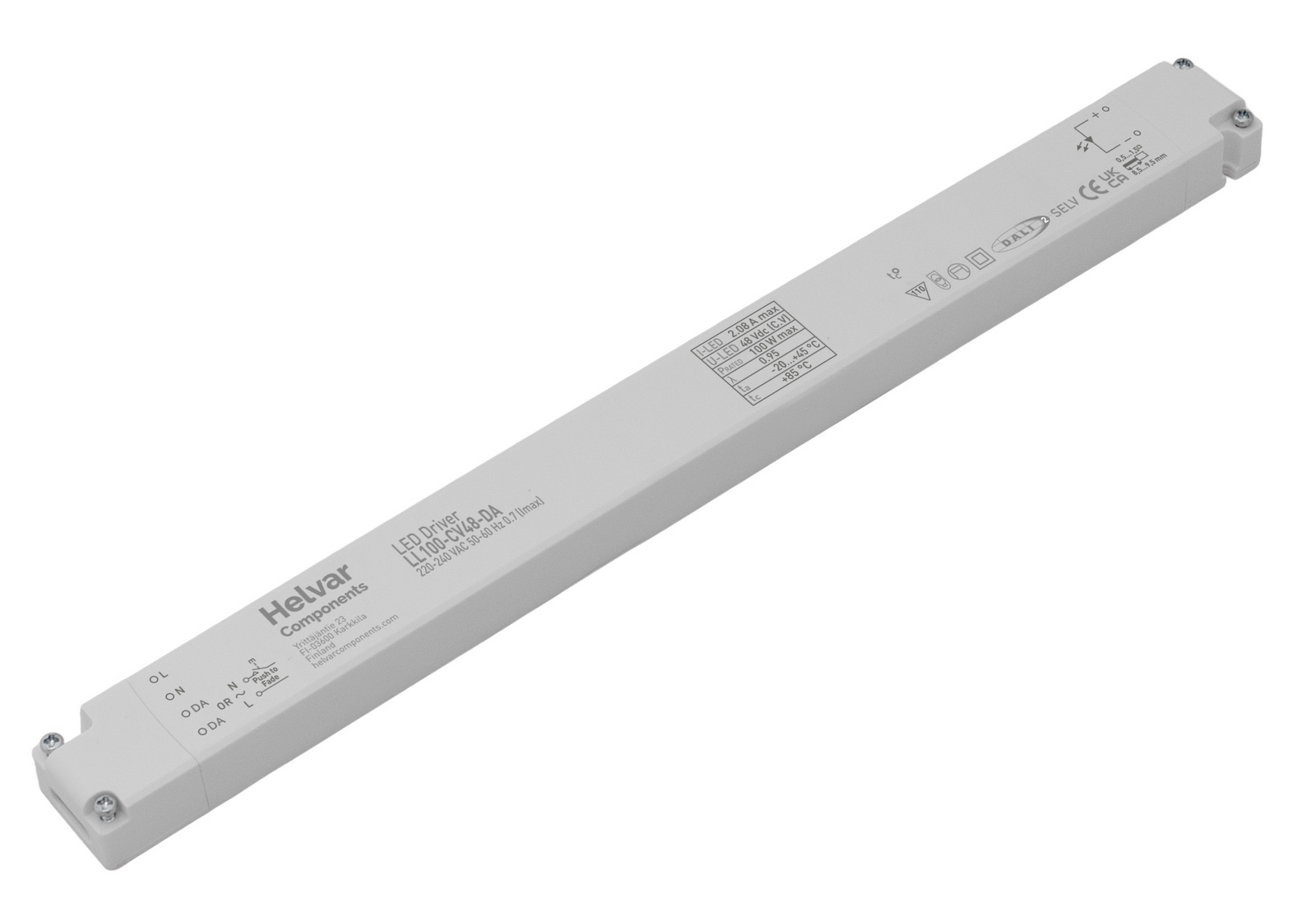

LL100-CV48-DA
100 W DALI-2 dimmable constant voltage LED driver with integrated strain relief
| Output | Constant voltage 48 V |
| Load protection | SELV60 |
| Max output power (W) | 100 |
| Total Harmonic Distortion @ Full power (THD %) | 8 |
| Power factor at full load | 0.95 |
| Efficiency up to (%) | 92 |
| Voltage range (VAC) | 198–264 |
| DC input characteristics | No DC input |
| Max temperature at tc point (°C) | 85 |
| Ambient temperature range | –20 °C .. +45 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 50000 |
| Control | DALI-2Push to Fade |
| Dimming range | 1% - 100% |
| Order code | LL100-CV48-DA 60/2160 |
