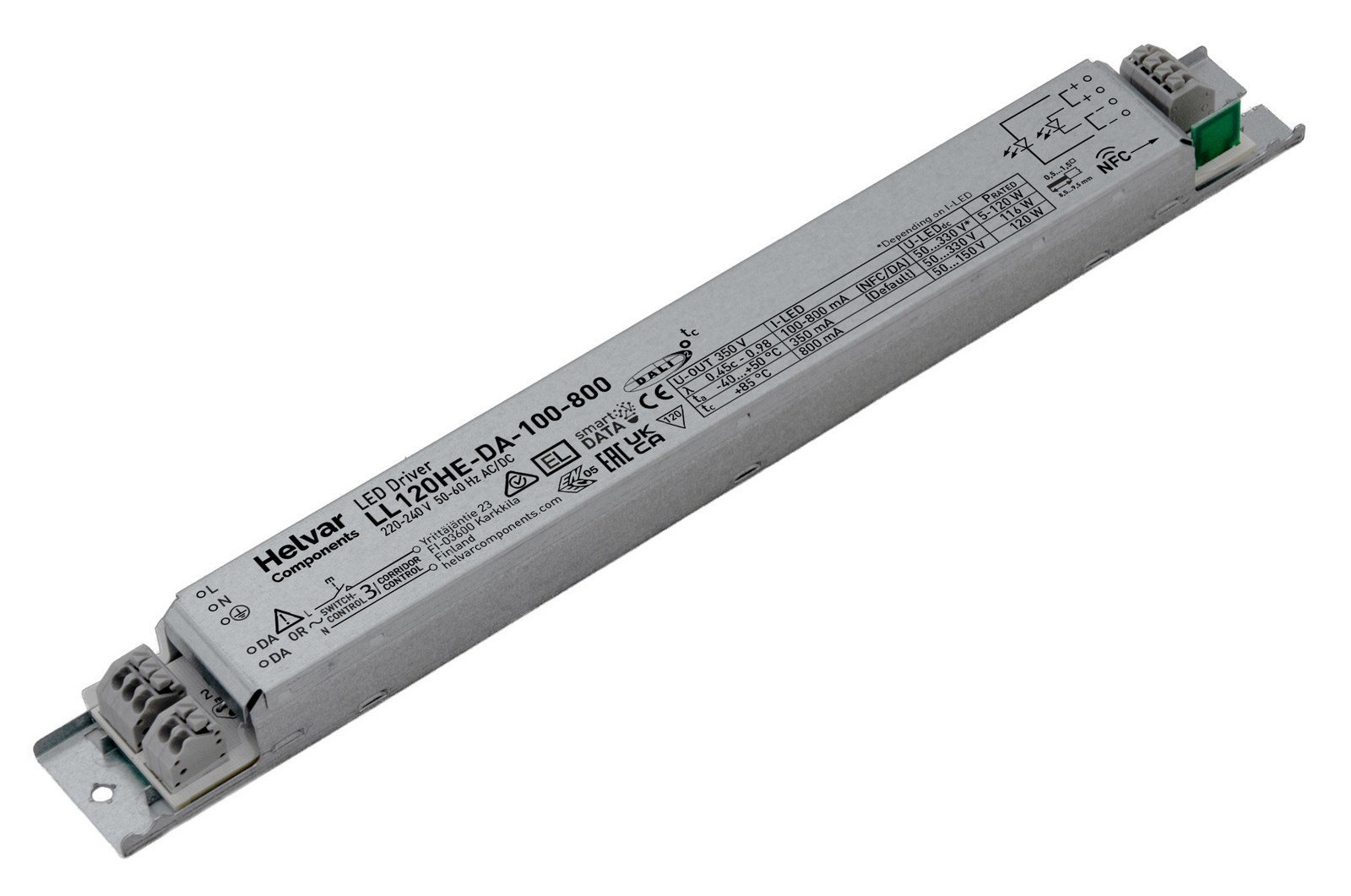

LL120HE-DA-100-800
120 W DALI-2 dimmable LED driver
| Output | Adjustable current |
| Load protection | Non-isolated |
| Max output power (W) | 120 |
| Power factor at full load | 0.98 |
| Efficiency up to (%) | 95.2 |
| Total Harmonic Distortion @ Full power (THD %) | 5 |
| Uout | 50 – 330 |
| Voltage range (VAC) | 198–264 |
| DC input characteristics | Approved for emergency lighting applications |
| DC range (V) | 176–281 |
| Max temperature at tc point (°C) | 85 |
| Ambient temperature range | –40°C ... +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Dimming range | 1% - 100% |
