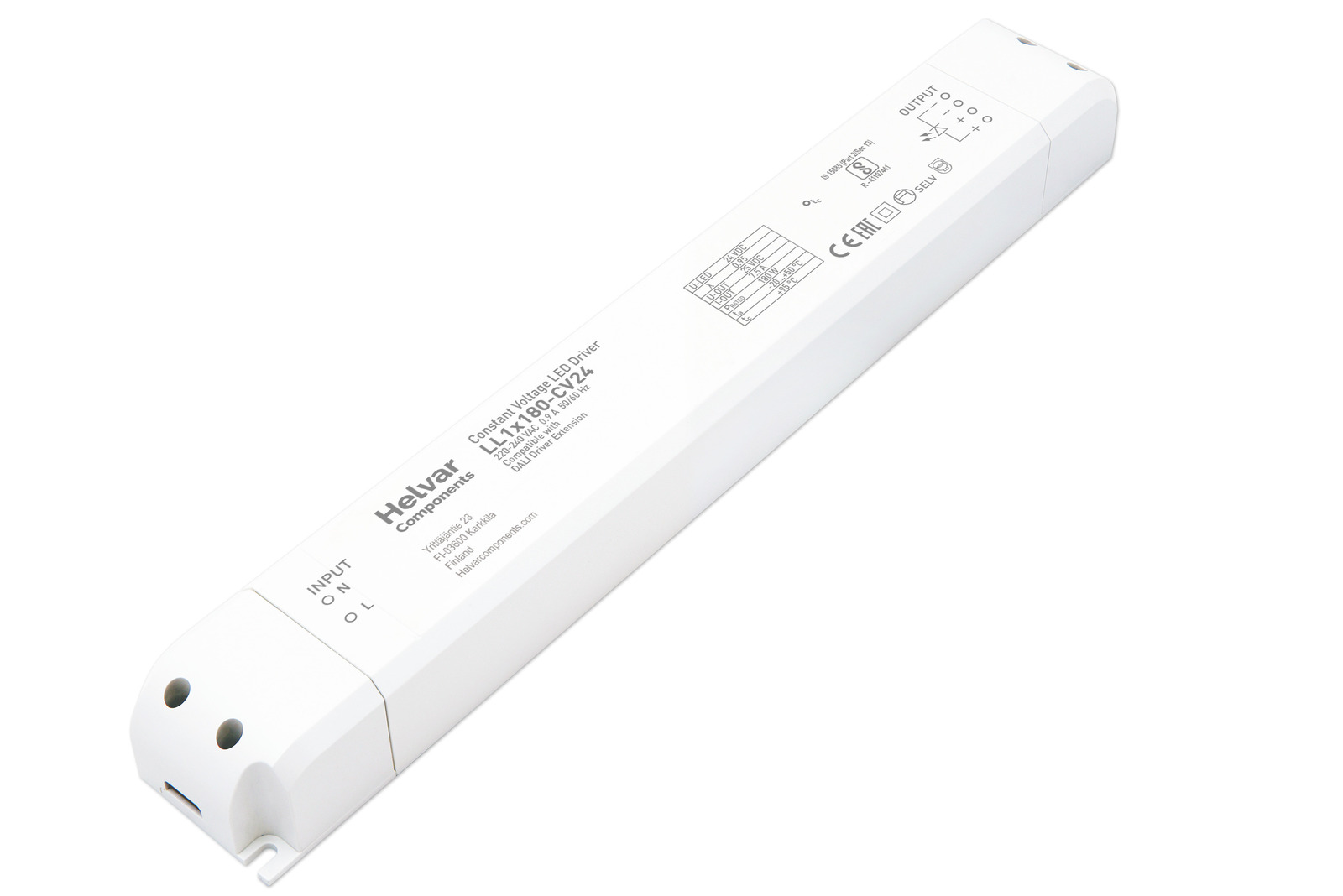

LL1x180-CV24
180 W constant voltage LED driver with integrated strain relief
| Output | Constant voltage 24 V |
| Load protection | SELV60 |
| Max output power (W) | 180 |
| Efficiency up to (%) | 92 |
| Power factor at full load | 0.95 |
| Voltage range (VAC) | 198–264 |
| DC input characteristics | No DC input |
| Max temperature at tc point (°C) | 95 |
| Ambient temperature range | –20 °C .. +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 50000 |
| Control | ON/OFF |
| Compatible products | LL1-CV-DA, LL1-CV-SC |
| Datasheet | LL1x180-CV24 20/880 |
