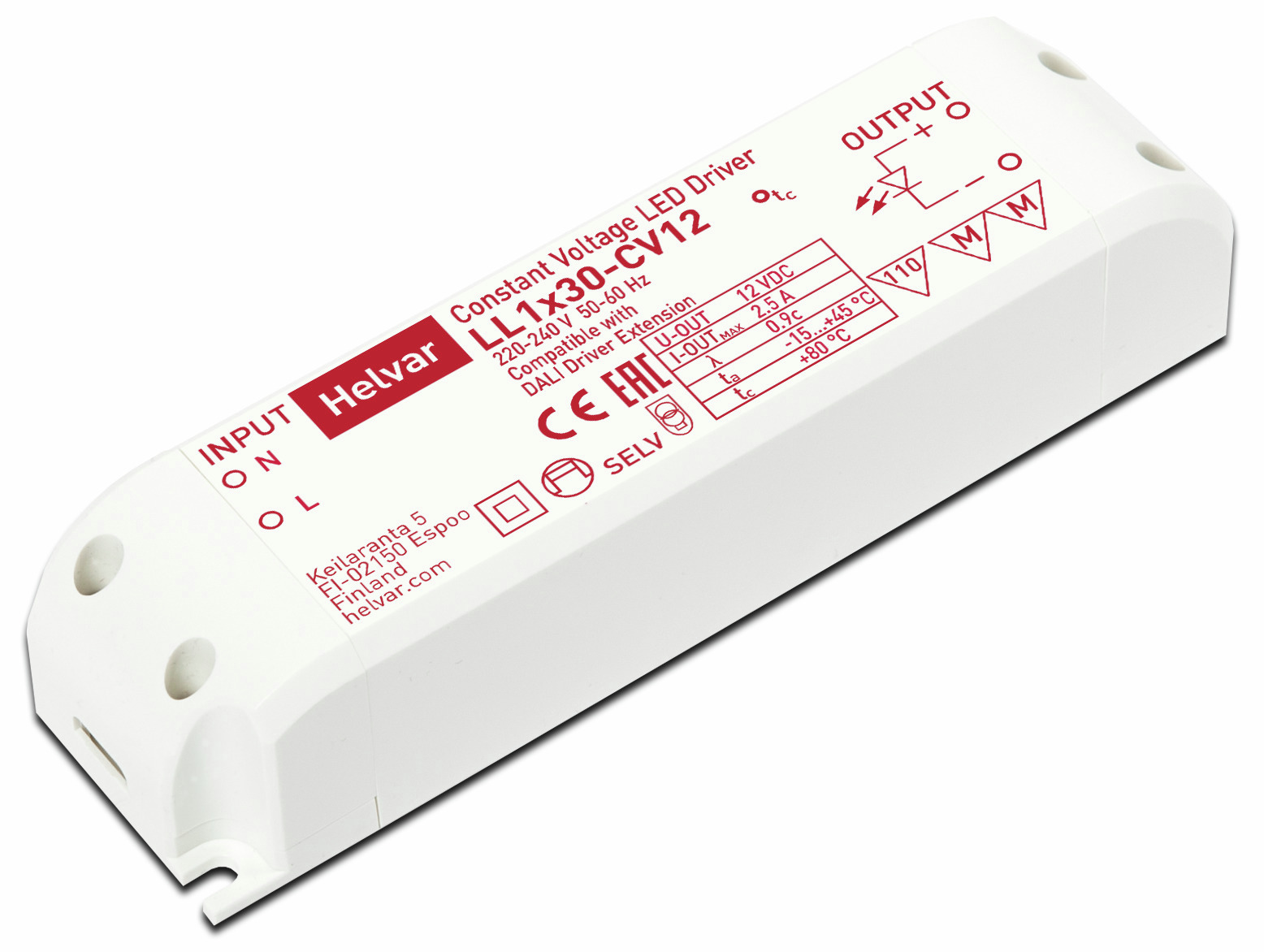

LL1x30-CV12 (Phase out)
30 W constant voltage LED driver with integrated strain relief
| Output | Constant voltage 12 V |
| Load protection | SELV60 |
| Max output power (W) | 30 |
| Efficiency up to (%) | 83 |
| Power factor at full load | 0.95 |
| Voltage range (VAC) | 198–264 |
| DC input characteristics | No DC input |
| Max temperature at tc point (°C) | 80 |
| Ambient temperature range | –15 °C .. +45 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 30000 |
| Control | ON/OFF |
| Certificates | CBBIS |
| Compatible products | LL1-CV-DA, LL1-CV-SC |
| Datasheet | LL1x30-CV12 30/1920 |
