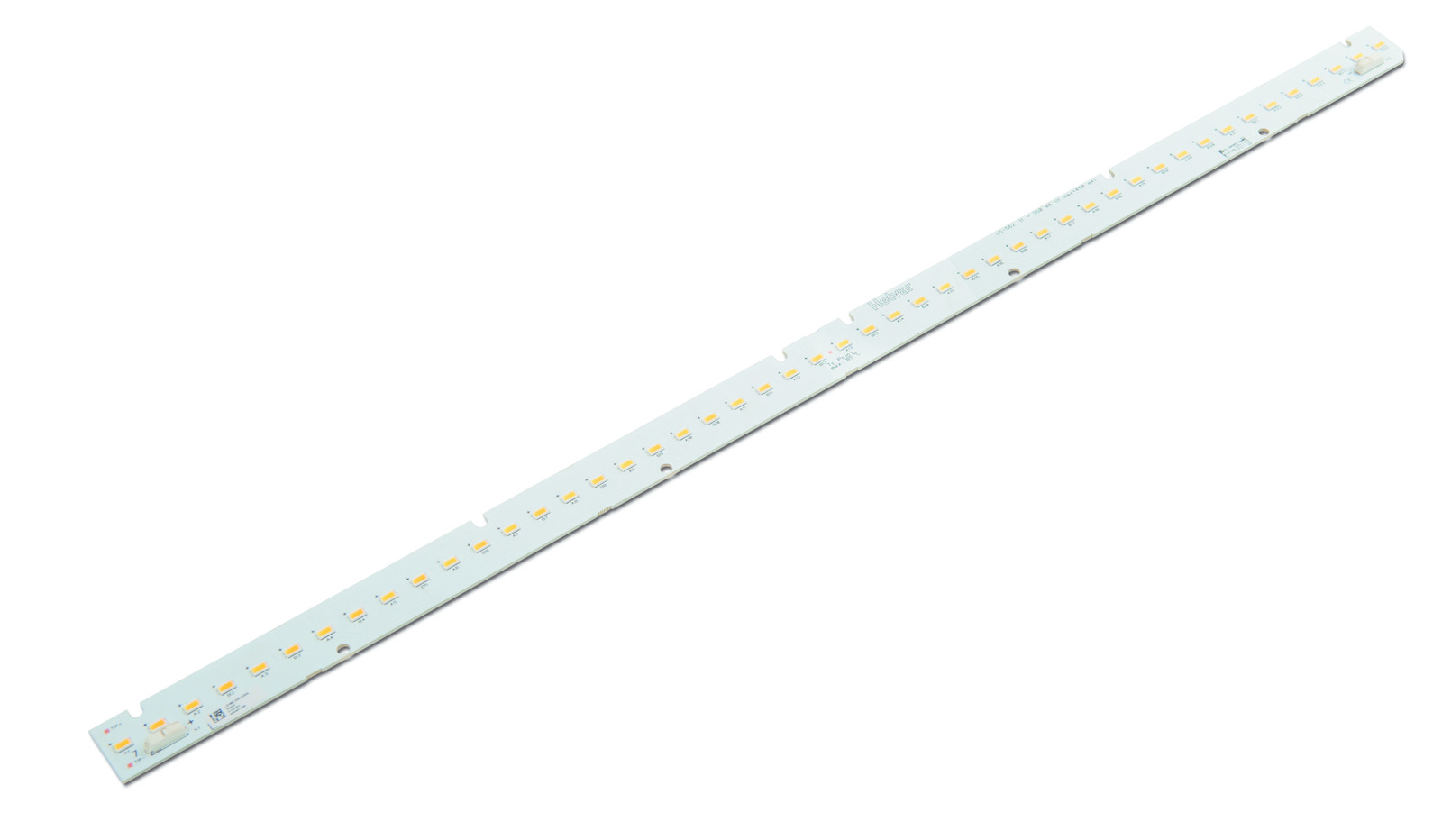

LS-562A (Discontinued)
Linear LED Module
| Compatible products | LMC |
| Insulation test voltage [V] | 1800 |
| Maximum operating current [mA] | 450 |
| Maximum peak current [mA] | 900 |
| Maximum rated voltage [V] | 400 |
| Nominal operating current [mA] | 350 |
| IP Rating | IP00 |
| Lifetime up to (h) | 50000 |
| Maximum temperature at Tc point [°C] | 80 |
| Operating temperature range | –20…+50 °C, Tp = Tc 65 °C |
| Beam angle [°] | 115 |
| Colour rendering index, min. | 80 |
| Risk group | 1 |
| Datasheet | LS-562-830-025A 30/150 |
